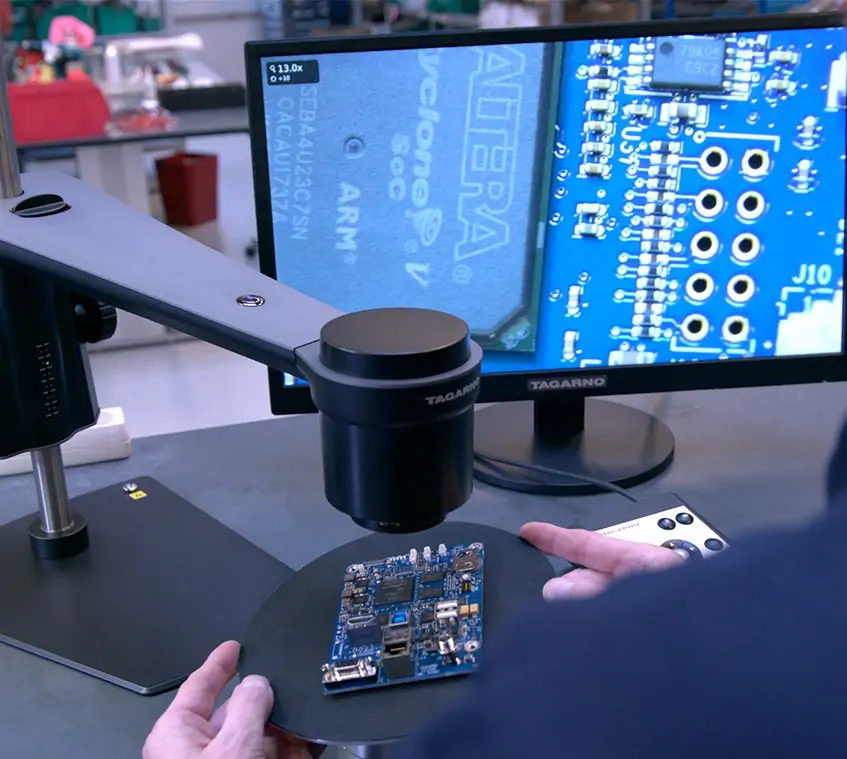

Using a digital microscope camera for PCB inspection

INSIGHTS

How do you choose the correct digital microscope camera?

Choosing the right digital microscope camera is crucial.

Here's 10 key factors you need to consider when choosing a digital microscope camera.

Digital microscope cameras, also known as microscopes with a camera, have revolutionized how we do quality control.

Not only are they optically simpler than other magnification systems.

They also allow for high-resolution imaging, easy collaboration, and precise analysis.

No matter what industry you’re in, choosing the right digital microscope camera is crucial.

In this guide, we’ll explore the key factors to consider when making your selection.

Key factors to consider when choosing a digital microscope camera

Finding the right digital microscope camera can be difficult.

But if you know what to look out for, you’re off to a good start.

Let’s look at 10 key factors that you need to consider when choosing a digital microscope camera.

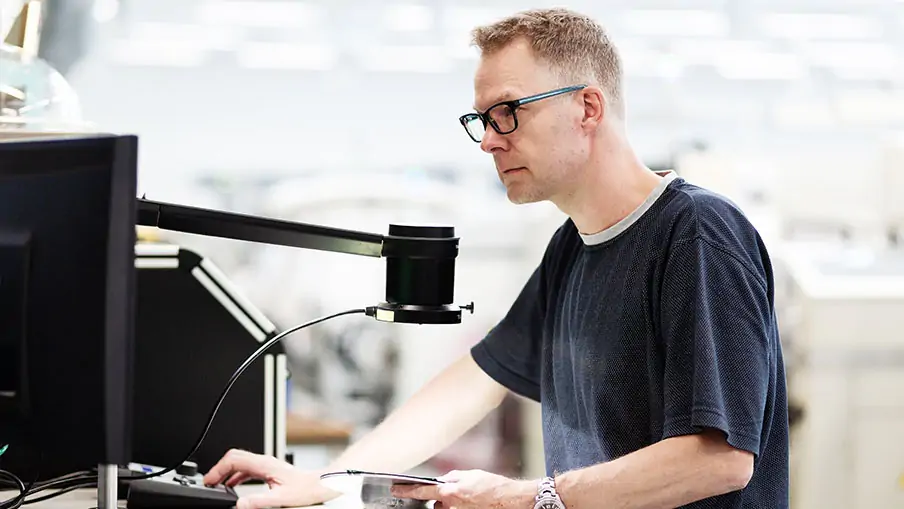

Man using a microscope with a camera from TAGARNO

PCB manufacturer using a digital microscope camera for their quality control processes.

KEY FACTOR 1

Image quality

One of the most critical factors when choosing a digital microscope camera is the image quality it delivers. The camera’s sensor and lens quality will greatly impact the clarity and resolution of your images.

Look for cameras with high-resolution sensors and high-quality optics to ensure you capture the finest details of your specimens.

But also keep an eye out for framerates. Make sure that the digital microscope camera delivers 60 frames per second. Simply put, this ensures that you don’t get seasick because there’s no lag between what’s happening underneath the camera and the monitor.

KEY FACTOR 2

Camera type

Digital microscope cameras come in various types, including USB cameras and integrated cameras.

USB cameras are versatile and can be easily connected to a computer for image capture and analysis but may be compromised in terms of image quality.

Integrated cameras refer to when the camera is built into the microscope to create a seamless experience. In this case, it’s important to note whether the microscope is part of a closed eco system or if it’s compatible with other systems.

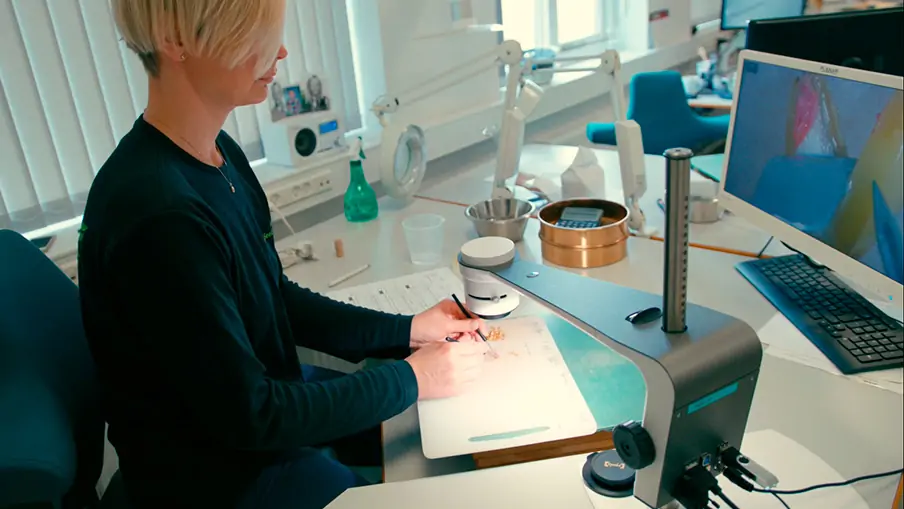

Woman using a digital microscope camera for seed testing

Digital microscope cameras are also great tools for seed testing.

KEY FACTOR 3

Software and features

The software that comes with the digital microscope camera is as important as the hardware. Look for cameras that offer user-friendly software with features such as image capture, annotation, measurement, and presets. Some cameras even have advanced features like time-lapse and AI.

KEY FACTOR 4

Your future needs

While some features may be included when buying a digital camera microscope, others are add-ons. Explore the options provided by the manufacturer. Perhaps you don’t need them all from day 1 but knowing that there’s other features to choose from will extend the longevity of your microscope.

You can even ask the manufacturer about their roadmap. They might have features coming that you’re already hoping to introduce in your processes.

"Switching to digital microscopes has
made a huge difference"

This quote is from Loïc Boutillier, Technician Methods at ALL CIRCUITS in France.


ALL CIRCUITS is one of many happy customers worldwide that uses microscopes from TAGARNO for their inspection needs.


See what other customers say about their microscopes from TAGARNO
Man using a TAGARNO digital camera microscope to inspect PCB
See what other customers say about their microscopes from TAGARNO

KEY FACTOR 5

Connectivity

With a digital microscope camera, it’s easy to share and collaborate on your microscopic findings. Simply make sure that the microscope either has Wi-Fi, Ethernet or USB capabilities.

This will give you the option of sharing the microscope image in online meetings with remote colleagues and business partners. By doing this, you can quickly discuss and solve issues that’s come up during your inspections. In turn, you’ll be able to improve how you collaborate.

KEY FACTOR 6

Budget

Budget considerations are essential when selecting a digital microscope camera. Prices can vary widely depending on the camera’s features and capabilities. Determine your budget and prioritize the features that are most important for your work.

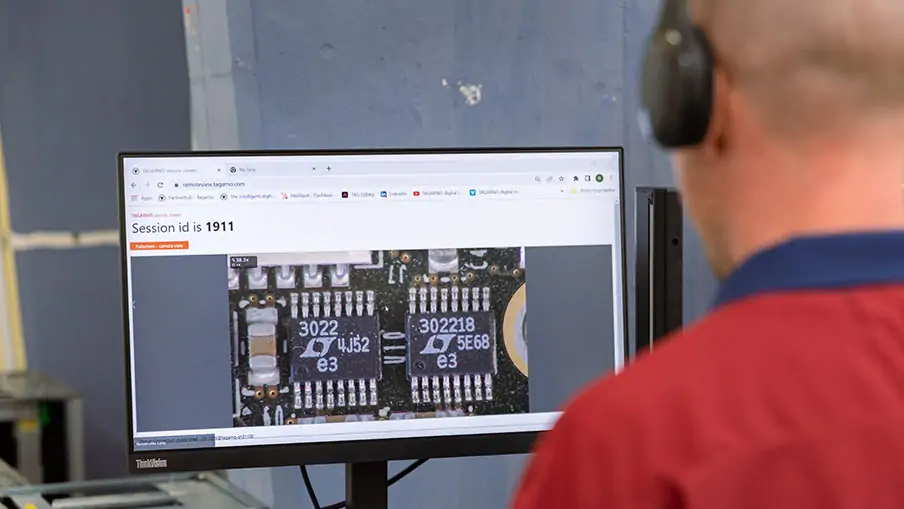

Man sharing digital camera microscope feed in online meeting to collaborate with remote colleagues

Microscope operator sharing the live image from his digital microscope camera in an online meeting to collaborate with remote colleagues.

KEY FACTOR 7

Ergonomics and installation

Consider the ease of installation and the ergonomics of the camera. It should be easy to mount and adjust your microscope. A camera that is cumbersome to install and operate can impede your work and productivity.

Choosing a digital microscope camera that’s easy and comfortable to use, however, is a great way to introduce an ergonomic microscope workstation which in turn will increase productivity and reduce escape rates.

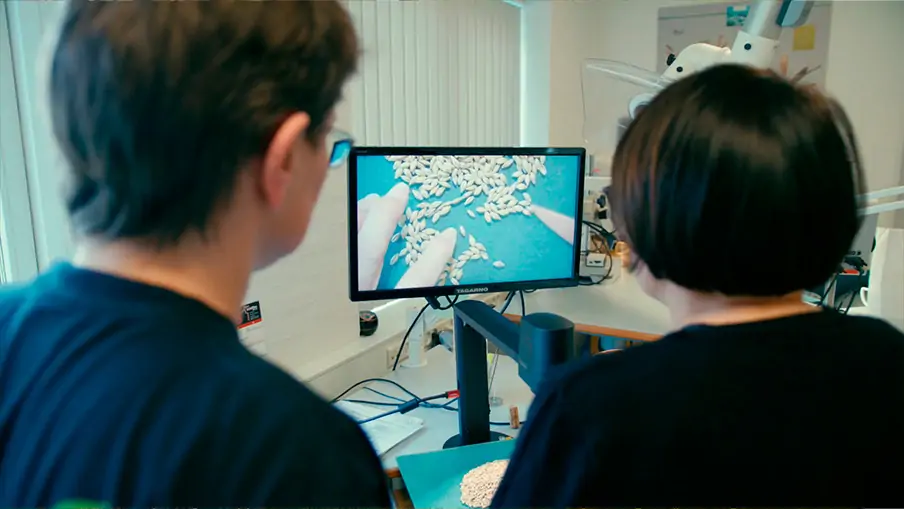

Seed analysts using a digital microscope camera for seed testing

It’s more comfortable for the operator to use a digital microscope camera than looking downwards through an ocular. This also allows multiple operators to inspect the sample at the same time.


KEY FACTOR 8

Brand reputation

Choose a digital microscope camera from a reputable brand or manufacturer that specializes in this specific type of microscope.

A brand that specializes in this technology will be more likely to provide reliable and durable digital microscope cameras.

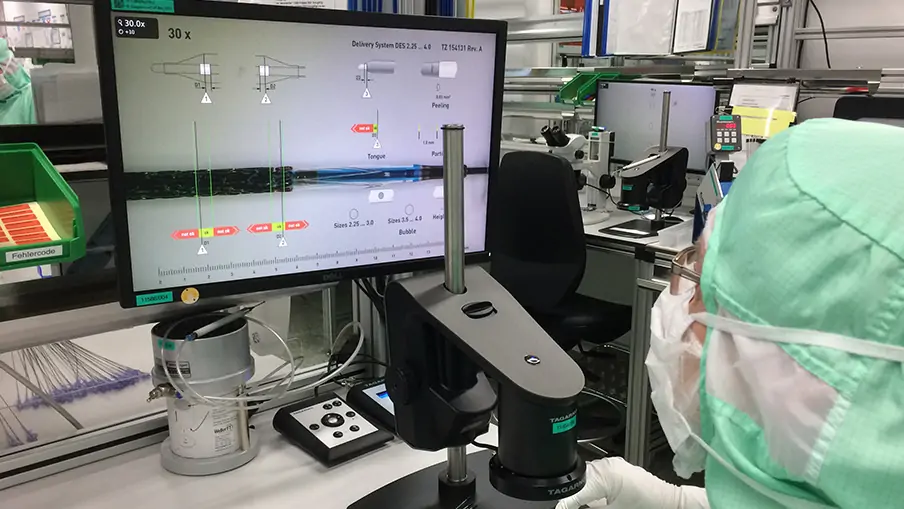

Operator using a digital microscope camera to inspect medical devices

From PCBs to seeds and medical devices, digital microscope cameras are used by companies worldwide and across industries.

KEY FACTOR 9

Technical support and warranty

Check if the manufacturer offers technical support and warranty options for the camera. This is essential for troubleshooting issues and ensuring the long-term reliability of your investment.

KEY FACTOR 10

Reviews and recommendation

Lastly, read reviews and seek recommendations from colleagues or online forums. Real-world experiences can provide valuable insights into the performance and reliability of a digital microscope camera.

Man using a TAGARNO TREND as a microscope with camera to inspect PCB

Due to its simple design, you can do low and high power magnification on the same system when choosing a digital microscope camera.

Finding the right digital microscope camera

As we now know, there’s a wide range of digital microscope cameras available on the market.

But the key factors mentioned in this blog post apply regardless of which industry you’re in.

If we look at what TAGARNO, a leading digital microscope camera manufacturer from Denmark, offer, the TAGARNO TREND checks all the boxes.

Let’s have a closer look at this particular microscope.

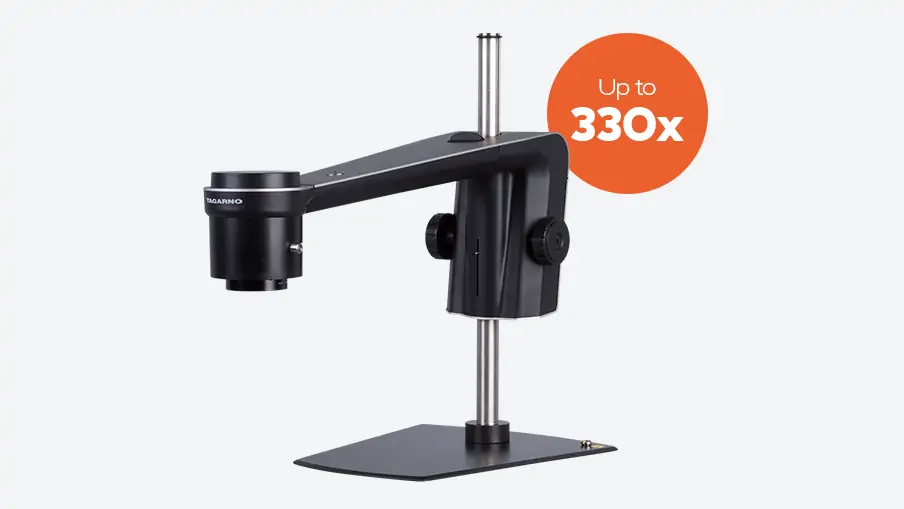

TAGARNO TREND is a great digital camera microscope for collaboration

TAGARNO TREND

Not only is TAGARNO a trusted brand and supplier of digital microscope cameras by companies worldwide.

TAGARNO is also the manufacturer of the TAGARNO TREND, a microscope that provides up to 330x magnification, multiple height settings and a long camera arm that ensures enough room to fit bigger samples underneath the camera.

Just like the other digital microscope cameras from TAGARNO, the TREND consists of an integrated camera, displays 60 frames per second and offers both auto focus and manual focus:

  • 60 frames per seconds ensures that there’s no lag between what’s happening underneath the microscope and on the monitor



  • Auto focus ensures that your sample always stays in focus, even if you’re moving it around, while manual focus provides extra flexibility if you need to focus on a specific area of your sample



Instead, what actually makes the TREND stand out is the wide range of built-in features and add-on options: From day one, you can use advanced features like presets and the Ruler app to take your inspections to the next level.

If needed, you can also activate additional software such as the Measurement app, use the Open API and even update the microscope with new firmware. This will give you access to new features as they are released.

Lastly, taking photos of your findings is incredibly easy. All you need to do is press the camera button on the control box. No computer needed.

You can access these photos on any computer that’s connected to the same network as the microscope. Or you can transfer them from the microscope to your computer of choice using an encrypted USB stick.

Pros

  • A microscope from TAGARNO, a brand that specializes in digital microscope cameras
  • Up to 330x magnification
  • Multiple height settings
  • Ergonomic and comfortable to use
  • Access to built-in advanced features and software add-ons
  • Displays 60 frames per second and offer auto focus and manual focus

Cons

  • Long arm requires a sturdy table to reduce vibrations at high magnifications

Download free brochure on TAGARNO TREND

Are you considering TREND as your next microscope with a camera?


With this free product brochure, you'll learn everything you need to know about this microscope, including a walk-through the features that make the TREND unique.


Download free brochure
Preview of "Is TREND the right microscope for me" brochure
Download free brochure

In summary

In conclusion, selecting the right digital microscope camera is crucial for capturing high-quality images and enhancing your research or educational endeavors. Consider image quality, camera type, software, your future needs, connectivity, budget, ergonomics, brand reputation, technical support, and recommendations when making your decision.

A great option is the TREND, a digital microscope from TAGARNO, that’ll allow you to take your inspection to the next level and collaborate effectively in your field.
